Machine data and video in one stream.
01 The system
A RAVidEn watches the machine and reads its controller. It streams both into any NVR, or straight to a laptop for live viewing. The same camera works on a robot cell, a CNC, or the UPS and transfer switch behind a data hall.
RAVidEns
Cameras that watch the machine and read its controller.
Overlay
Data drawn on the video stream.
DataBorder
Data encoded in the video stream.
Recorder
Store in any NVR and retrieve trends and history straight from the feed.
02 Overlay and DataBorder
RAVidEn reads the controller and draws live values, states, trends and the DataBorder into a standard camera stream. Any recorder stores it.

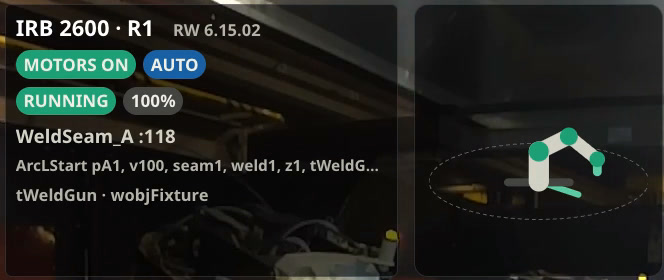

Mode, motors, the running routine and the program line. What the controller knows, drawn on the machine that is doing it.

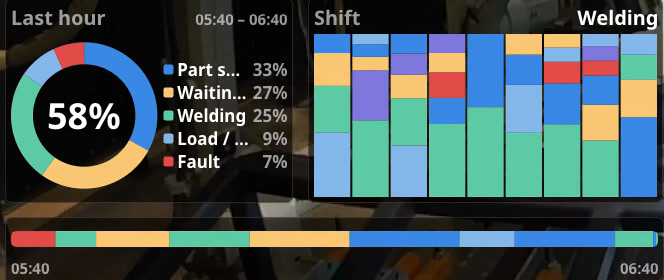

The camera keeps its own history and draws the trends on the picture. A clip carries them too.

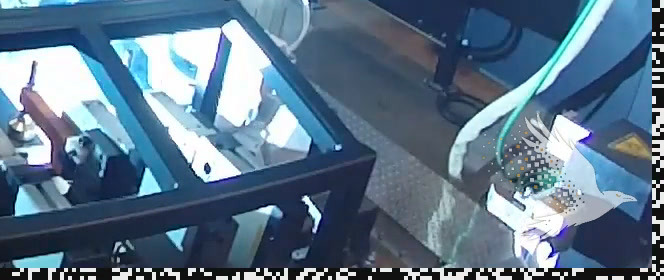

A ring of blocks around the frame carries the values, states and history. Tested through re-encoding, clipping and screen recording.
03 Three ways in

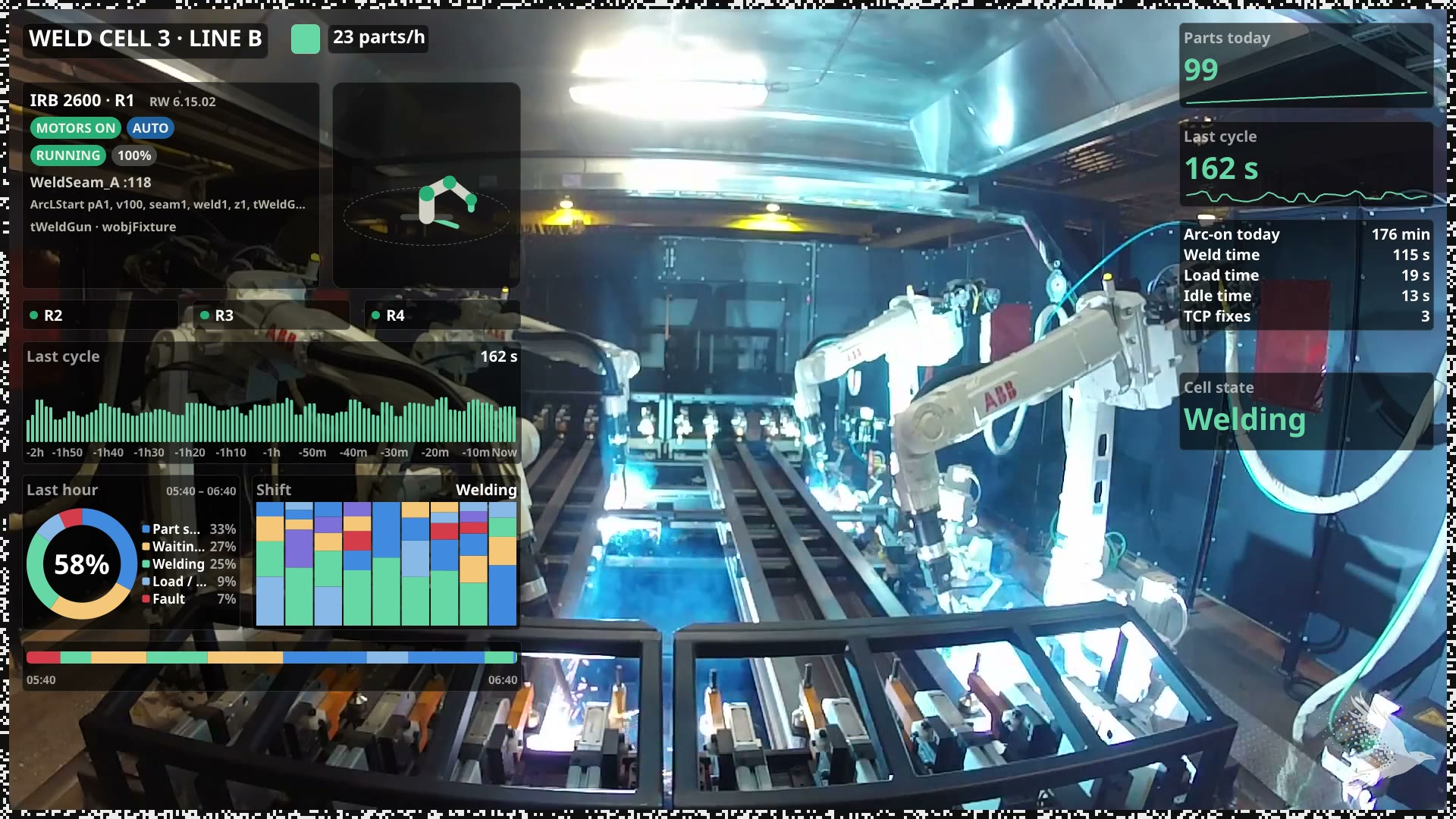

A RAVidEn produces a standard camera stream. Your recorder stores it like any other camera, and the overlay and the DataBorder go with it. Scrub back to the fault and the values are on the picture.
Open the live view when something is wrong. The picture and the values move together, so the cause and the effect show up in the same frame. No pendant, no laptop at the machine.

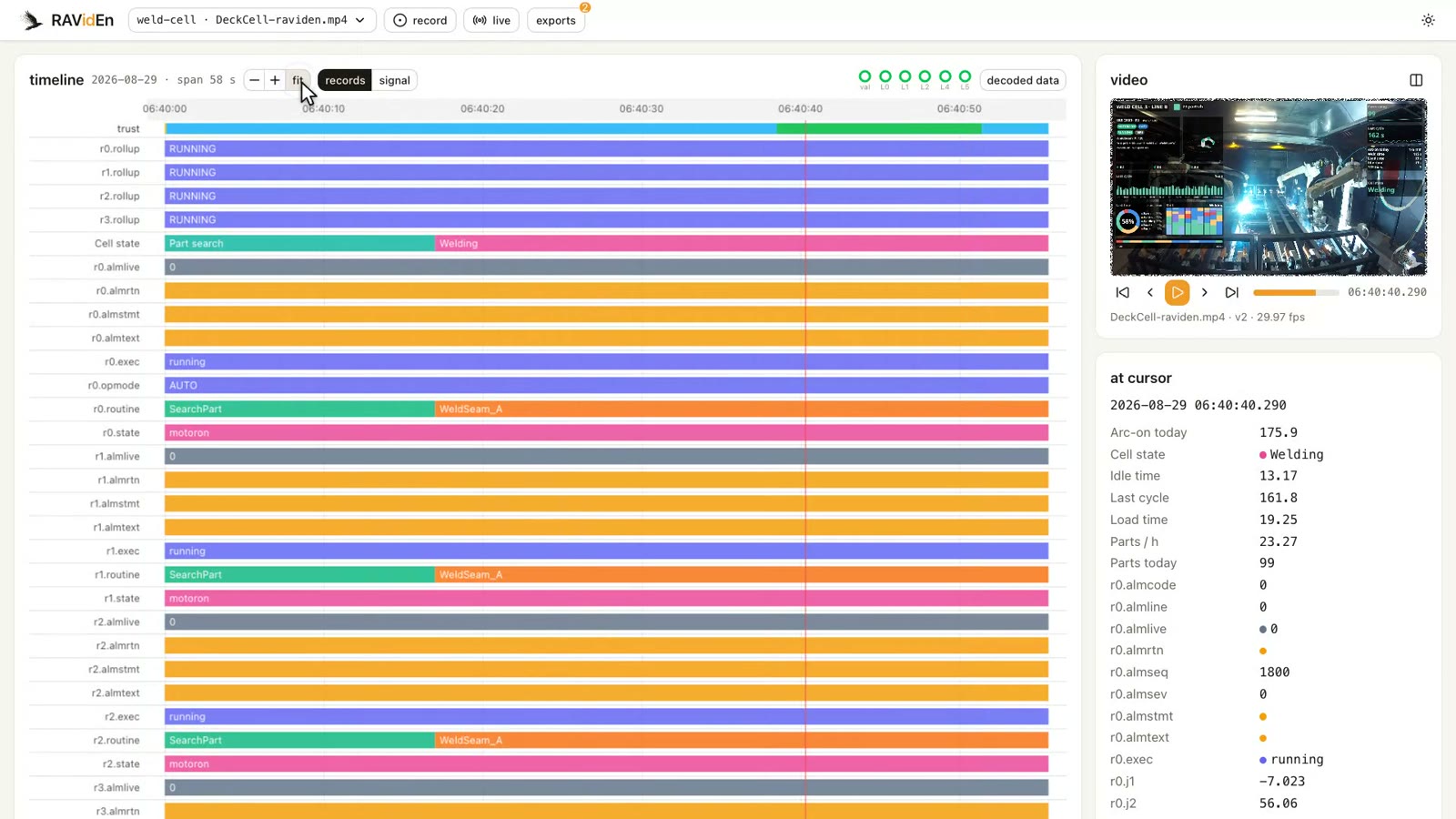

Export a clip and send it. The decoder reads the DataBorder out of the pixels and shows every value, the trends and the stored history on a timeline.
04 Why a RAVidEn
The controller knows what the machine is doing. The camera sees it happen. RAVidEn draws the controller's values on the picture and writes them into every frame.
Keep the historian. Keep the cameras. Add nothing. No server, no database, no plugin on the recorder. The data is in the clip, so an export, an email attachment or a copy on a phone still decodes.
Plant and maintenance
Cameras that show machine state, so what happened is on the picture.
Data center operations
Battery, load and the transfer between feeds, on the picture of the gear that carried them.
Integrators and OEMs
A witness camera for commissioning and warranty.
Axis integrators
An operations line item on the cameras they already quote.
Safety
Reconstruct an incident from the picture and the machine state in the same frame.
Controls engineers
Live values on the stream, with no HMI login and no laptop at the machine.
05 Start
Install RAVidEn on an Axis camera, connect it to the controller, and place the values on the picture. The stream shows up in the recorder like any other camera.
